JEE Advanced 2016
Paper-1 2016
Multiple correct answers - Select all that apply
Question

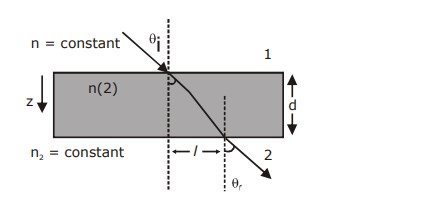

A transparent slab of thickness $d$ has a refractive index $n(z)$ that increases with $z$. Here $z$ is the vertical distance inside the slab, measured from the top. The slab is placed between two media with uniform refractive indices $n_1$ and $n_2\left(>n_1\right)$, as shown in the figure. ray of light is incident with angle $\theta_2$ from medium 1 and emerges in medium 2 with refraction angle $\theta_{\mathrm{f}}$ with a lateral displacement I. Which of the following statement(s) is(are) true?
Select ALL correct options:
A
$\ell$ is independent of $\mathrm{n}_2$
B
$\ell$ is dependent on $n(z)$
C
$n_1 \sin \theta_2=n_2 \sin \theta_f$
D
$n_1 \sin \theta_1=\left(n_2-n_1\right) \sin \theta_f$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

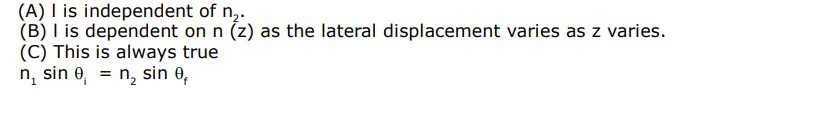

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
