JEE-ADVANCED-2014
PAPER 1
Multiple correct answers - Select all that apply
Question

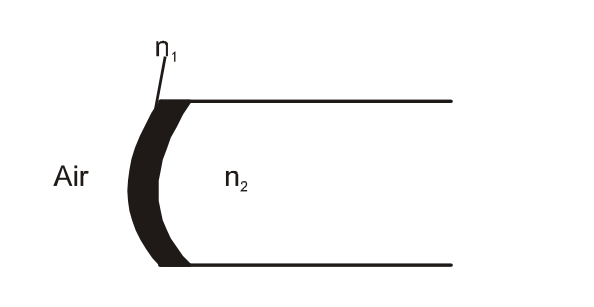

A transparent thin film of uniform thickness and refractive index $n_1=1.4$ is coated on the convex spherical surface of radius $R$ at one end of a long solid glass cylinder of refractive index $n_2=1.5$. as shown in the figure. Rays of light of light parallel to the axis of the cylinder traversing through the film from air to glass get focused at distance $f_1$ from the film, while rays of light traversing from glass to air get focused at distance $f_2$ from the film. Then
Question Image
Select ALL correct options:
A
$\left|f_1\right|=3 R$
B
$\left|f_1\right|=2.8 R$
C
$\left|f_2\right|=2 R$
D
$\left|f_2\right|=1.4 R$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

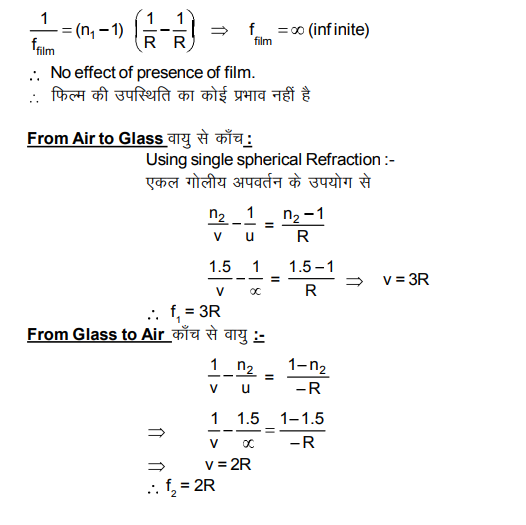

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
