JEE Advanced 2016
Paper-1 2016
Question
A uniform wooden stick of mass 1.6 kg and length $\ell$ rests in an inclined manner on a smooth, vertical wall of height $h(<\ell)$ such that a small portion of the stick extends beyond the wall. The reaction force of the wall on the stick is perpendicular to the stick. The stick makes an angle of $30^{\circ}$ with the wall and the bottom of the stick is on a rough floor. The reaction of the wall on the stick is equal in magnitude to the reaction of the floor on the stick. The ration $\mathrm{h} / \ell$ and the frictional force f at the bottom of the stick are ( $\mathrm{g}=10 \mathrm{~ms}^{-2}$ )
Select the correct option:
A
$\frac{\mathrm{h}}{\ell}=\frac{\sqrt{3}}{16}, \mathrm{f}=\frac{16 \sqrt{3}}{3} \mathrm{~N}$
B
$\frac{h}{\ell}=\frac{3}{16}, f=\frac{16 \sqrt{3}}{3} N$
C
$\frac{\mathrm{h}}{\ell}=\frac{3 \sqrt{3}}{16}, \mathrm{f}=\frac{8 \sqrt{3}}{3} \mathrm{~N}$
D
$\frac{h}{\ell}=\frac{3 \sqrt{3}}{16}, f=\frac{16 \sqrt{3}}{3} N$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

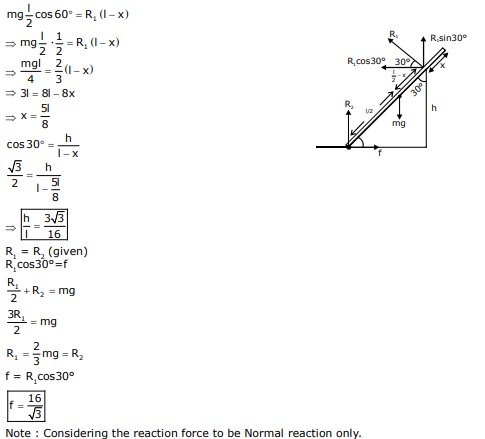

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
