JEE Advance 2017
Paper-2
Question

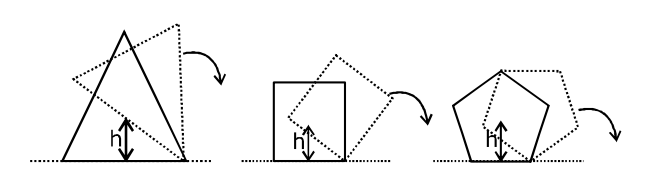

Consider regular polygons with number of sides $n=3,4,5 \ldots \ldots$ as shown in the figure, The center of mass of all the polygons is at height $h$ from the ground. They roll on a horizontal surface about the leading vertex without slipping and sliding as depicted,. The maximum increase in height of the locus of the center of mass for each polygton is $\Delta$. Then $\Delta$ depends on $n$ and $h$ as
Question Image
Select the correct option:
A
$\Delta=\mathrm{h} \sin ^2\left(\frac{\pi}{\mathrm{n}}\right)$
B
$\Delta=\mathrm{htan}^2\left(\frac{\pi}{2 \mathrm{n}}\right)$
C
$\Delta=h\left(\frac{1}{\cos \left(\frac{\pi}{n}\right)}-1\right)$
D
$\Delta=h \sin \left(\frac{2 \pi}{h}\right)$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

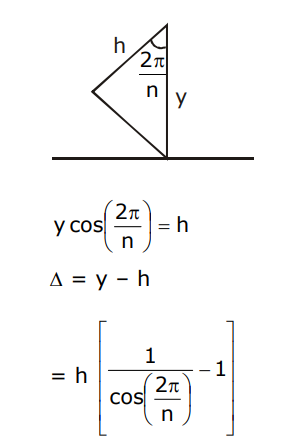

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
