Question

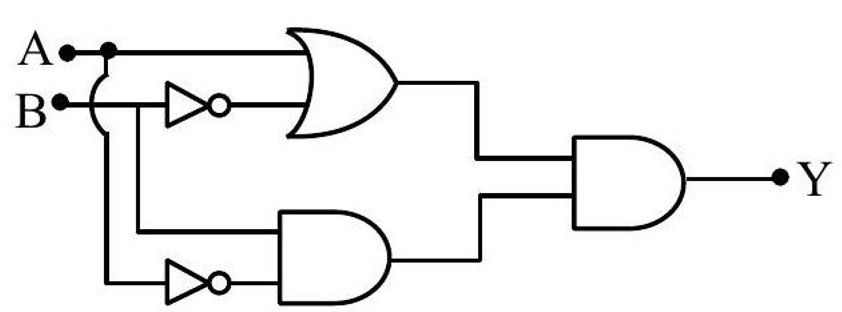

The output Y of following circuit for given inputs is :

Select the correct option:

A

A⋅B(A+B)

B

A⋅B

C

00

D

$\bar{A} \cdot B$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

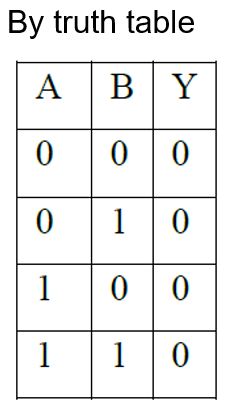

Solution

Question Tags

JEE Main

Physics

Medium
