A circuit to verify law uses ammeter

JEE MAIN 2020

06-09-2020 S2

Question

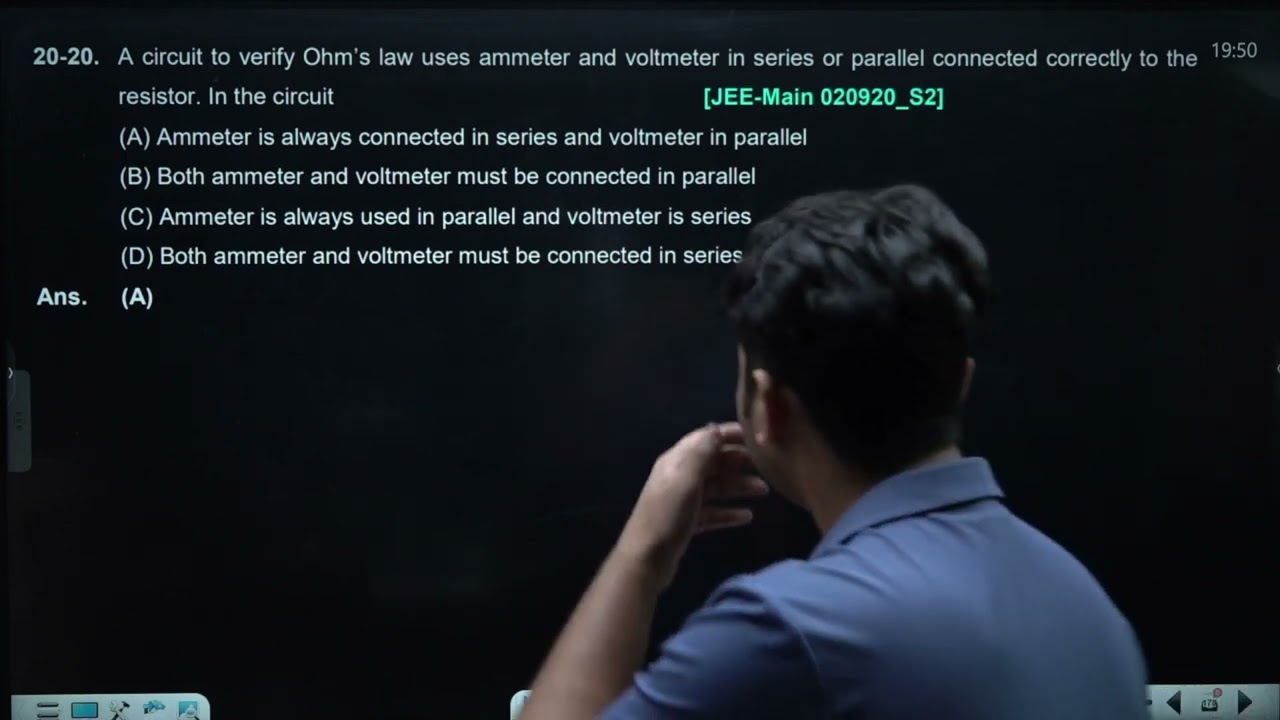

A circuit to verify Ohm’s law uses ammeter and voltmeter in series or parallel connected correctly to the resistor. In the circuit

Select the correct option:

Ammeter is always connected in series and voltmeter in parallel

Both ammeter and voltmeter must be connected in parallel

Ammeter is always used in parallel and voltmeter is series

Both ammeter and voltmeter must be connected in series

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution

Ammeter is always connected in series and voltmeter is connected in parallel.

Question Tags

JEE Main

Physics

Easy
