JEE Advanced 2024
Paper-1 2024
Multiple correct answers - Select all that apply
Question

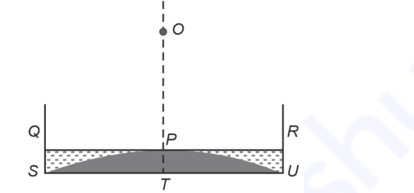

A glass beaker has a solid, plano-convex base of refractive index 1.60, as shown in the figure. The radius of curvature of the convex surface ( $S P U$ ) is 9 cm , while the planar surface (STU) acts as a mirror. This beaker is filled with a liquid of refractive index $n$ up to the level QPR. If the image of a point object $O$ at a height of $h$ (OT in the figure) is formed onto itself, then, which of the following option(s) is (are) correct?
Select ALL correct options:
A
For $n=1.42, h=50 \mathrm{~cm}$
B
For $n=1.35, h=36 \mathrm{~cm}$
C
For $n=1.45, h=65 \mathrm{~cm}$
D
For $n=1.48, h=85 \mathrm{~cm}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

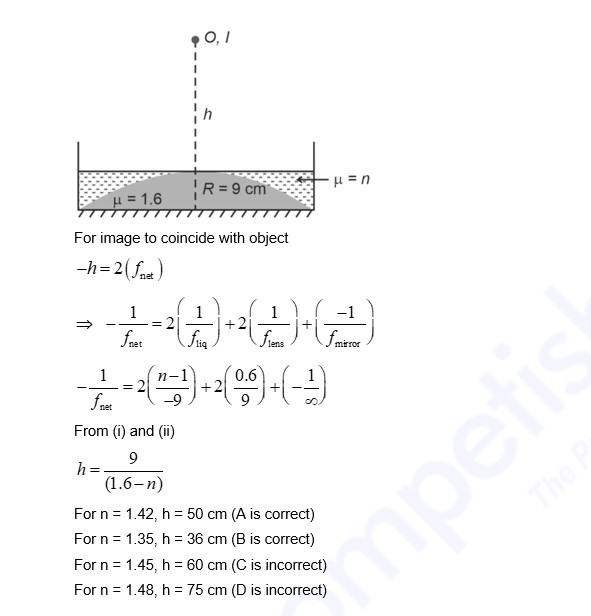

Solution
Solution Image
Question Tags
JEE Advance
Physics
Medium
