Question

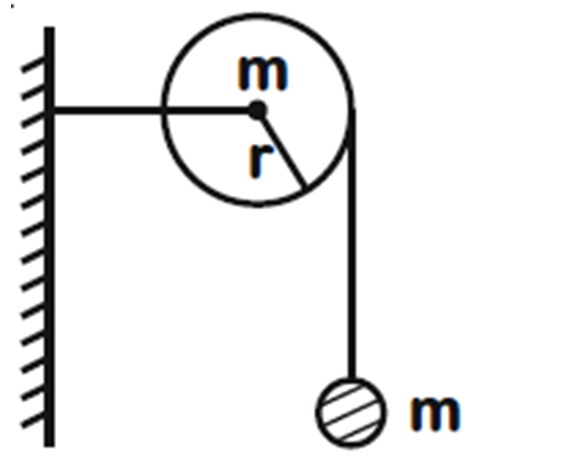

As shown in the figure, a bob of mass m is tied by a massless string whose other end portion is wound on a fly wheel (disc) of radius r and mass m. When released from rest the bob starts falling vertically. When it has covered a distance of h, the angular speed of the wheel will be:
Select the correct option:
A
$r \sqrt{\frac{3}{2 g h}}$
B
$r \sqrt{\frac{3}{4 g h}}$
C
$\frac{1}{r} \sqrt{\frac{4 g h}{3}}$
D
$\frac{1}{\mathrm{r}} \sqrt{\frac{2 \mathrm{gh}}{3}}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
Solution
Solution Image
