JEE Advance 2024
Paper-2 2024
Question

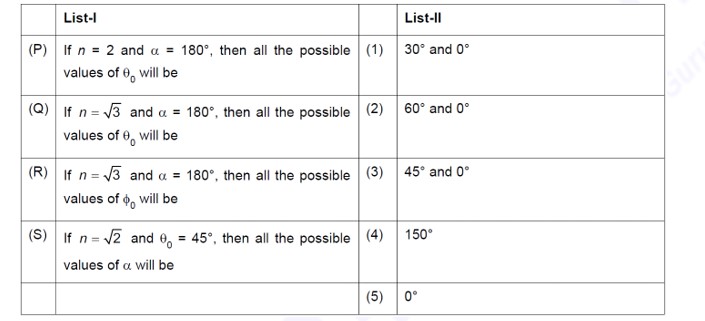

A light ray is incident on the surface of a sphere of refractive index $n$ at an angle of incidence $\theta_0$. The ray partially refracts into the sphere with angle of refraction $\phi_0$ and then partly reflects from the back surface. The reflected ray then emerges out of the sphere after a partial refraction. The total angle of deviation of the emergent ray with respect to the incident ray is $\alpha$. Match the quantities mentioned in List-I with their values in List-II and choose the correct option.
Select the correct option:
A
P → 5; Q → 2; R→ 1; S→ 4
B
P→5; Q→ 1; R→ 2; S→ 4
C
P→ 3; Q→ 2; R→ 1; S→ 4
D
P→ 3; Q→ 1; R→ 2; S→ 5
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

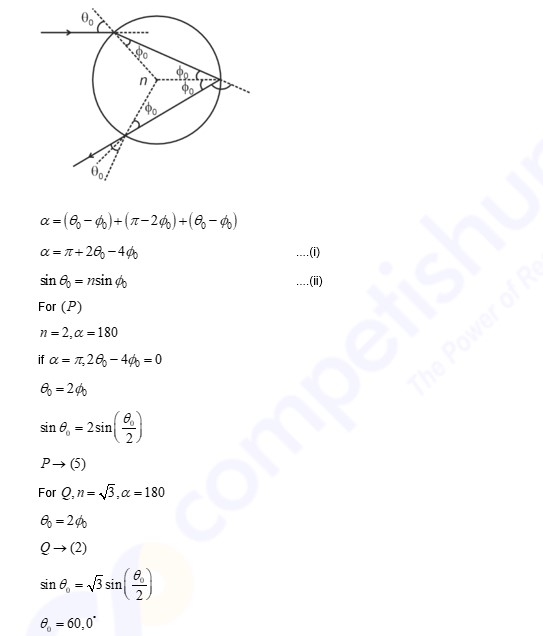

Solution
Solution Image
Question Tags
JEE Advance
Physics
Medium
