JEE Advance 2021
Paper 1
Multiple correct answers - Select all that apply
Question
A long straight wire carries a current, $\mathrm{I}=2$ ampere. A semi-circular conducting rod is placed beside it on two conducting parallel rails of negligible resistance. Both the rails are parallel to the wire. The wire, the rod and the rails lie in the same horizontal plane, as shown in the figure. Two ends of the semi-circular rod are at distances 1 cm and 4 cm from the wire. At time $\mathrm{t}=0$, the rod starts moving on the rails with a speed $\mathrm{v}=3.0 \mathrm{~m} / \mathrm{s}$ (see the figure). A resistor $\mathrm{R}=1.4 \Omega$ and a capacitor $\mathrm{C}_0=5.0 \mu \mathrm{~F}$ are connected in series between the rails. At time $\mathrm{t}=0, \mathrm{C}_0$ is uncharged. Which of the following statement(s) is(are) correct? $\left[\mu_0=4 \pi \times 10^{-7} \mathrm{SI}\right.$ units. Take $\left.\ln 2=0.7\right]$
Question Image
Select ALL correct options:
A
Maximum current through R is $1.2 \times 10^{-6}$ ampere
B
Maximum current through $R$ is $3.8 \times 10^{-6}$ ampere
C
Maximum charge on capacitor $\mathrm{C}_0$ is $8.4 \times 10^{-12}$ coulomb
D
Maximum charge on capacitor $\mathrm{C}_0$ is $2.4 \times 10^{-12}$ coulomb
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

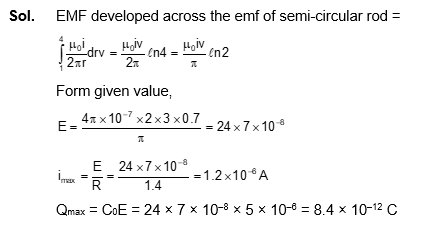

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
