JEE MAIN 2019
09-04-2019 - S1
Question
A moving coil galvanometer has resistance $50 \Omega$ and it indicates full deflection at 4 mA current. A voltmeter is made using this galvanometer and a $5 \Omega$ resistance. The maximum voltage, that can be measured using this voltmeter, will be close to:
Select the correct option:
A
10 V
B
20 V
C
15 V
D
40 V
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

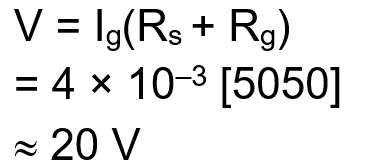

Solution
Solution Image
Question Tags
JEE Main
Physics
Medium
