JEE Advanced 2023
Paper-1 2023
Multiple correct answers - Select all that apply
Question

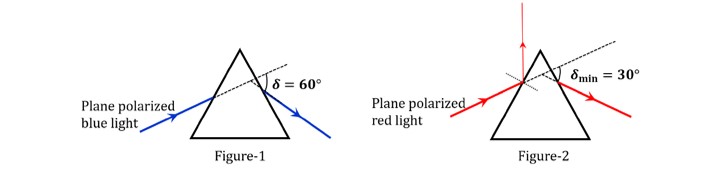

A plane polarized blue light ray is incident on a prism such that there is no reflection from the surface of the prism. The angle of deviation of the emergent ray is $\delta=60^{\circ}$ (see Figure-1). The angle of minimum deviation for red light from the same prism is $\delta_{\min }=30^{\circ}$ (see Figure-2). The refractive index of the prism material for blue light is $\sqrt{3}$. Which of the following statement(s) is(are) correct?
Select ALL correct options:
A
The blue light is polarized in the plane of incidence.
B
The angle of the prism is 45°.
C
The refractive index of the material of the prism for red light is $\sqrt{2}$. .
D
The angle of refraction for blue light in air at the exit plane of the prism is 60°.
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

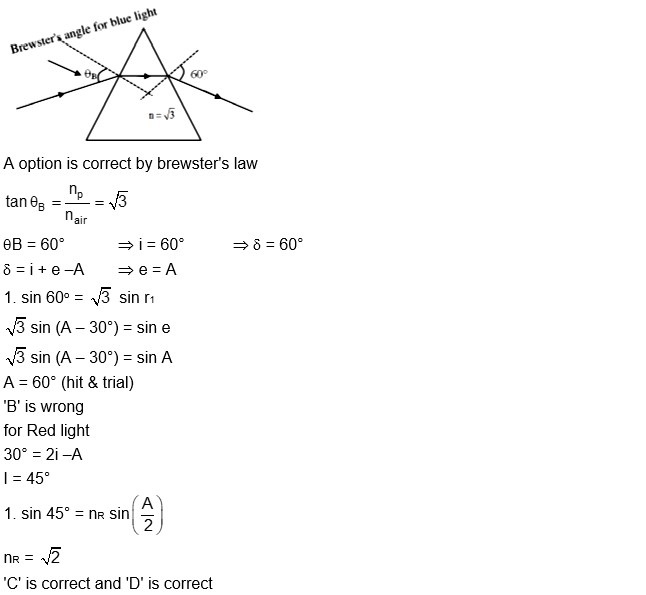

Solution
Solution Image
