JEE MAIN 2022
25-06-2022 S2
Question
A sinusoidal voltage $V(t)=210 \sin 3000 t$ volt is applied to a series LCR circuit in which $L=10 \mathrm{mH}, C=25 \mu \mathrm{~F}$ and $\mathrm{R}=100 \Omega$. The phase difference $(\Phi)$ between the applied voltage and resultant current will be :
Select the correct option:
A
$\tan ^{-1}(0.17)$
B
$\tan ^{-1}(9.46)$
C
$\tan ^{-1}(0.30)$
D
$\tan ^{-1}(13.33)$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

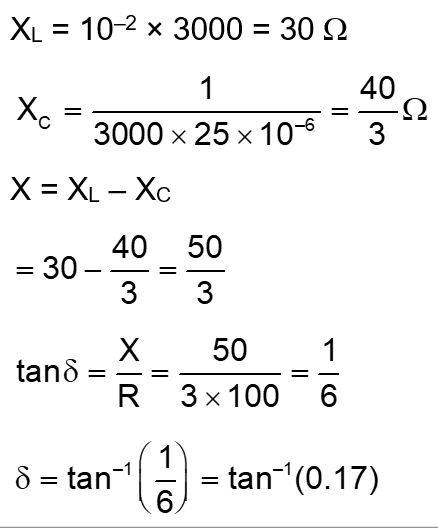

Solution
Solution Image
Question Tags
JEE Main
Physics
Easy
