JEE Advanced 2014
Paper-2 2014
Question
A spray gun is shown in the figure where a piston pushes air out of a nozzle. A thin tube of uniform cross section is connected to the nozzle. The other end of the tube is in a small liquid container. As the piston pushes air through the nozzle, the liquid from the container rises into the nozzle and is sprayed out. For the spray gun shown, the radii of the piston and the nozzle are 20 mm and 1mm respectively. The upper end of the container is open to the atmosphere. If the density of air is $\rho_{\mathrm{a}}$ and that of the liquid $\rho_{\ell}$, then for a given piston speed the rate (volume per unit time) at which the liquid is sprayed will be proportional to
Select the correct option:
A
$\sqrt{\frac{\rho_{\mathrm{a}}}{\rho_{\ell}}}$
B
$\sqrt{\rho_{\mathrm{a}} \rho_{\ell}}$
C
$\sqrt{\frac{\rho_{\ell}}{\rho_{\mathrm{a}}}}$
D
$\rho_{\ell}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

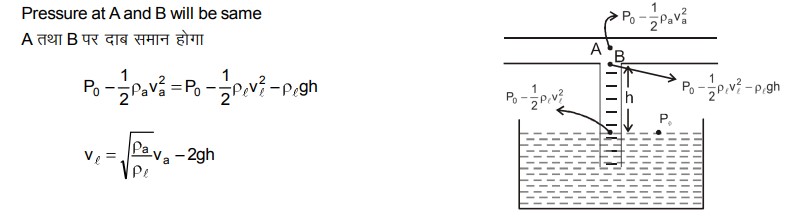

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
