Question

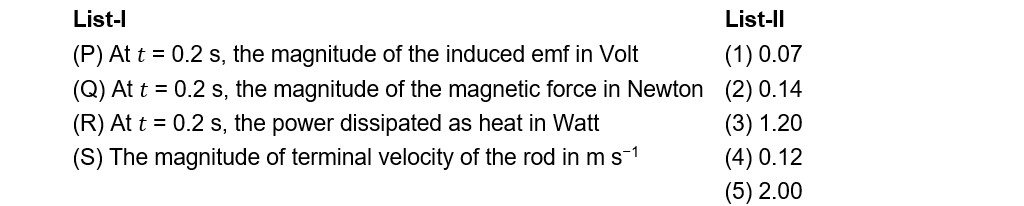

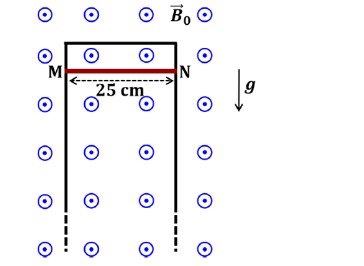

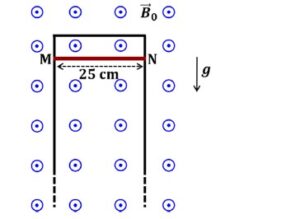

A thin conducting rod MN of mass 20 gm , length 25 cm and resistance $10 \Omega$ is held on frictionless, long, perfectly conducting vertical rails as shown in the figure. There is a uniform magnetic field $B_0=4 \mathrm{~T}$ directed perpendicular to the plane of the rod-rail arrangement. The rod is released from rest at time $t=0$ and it moves down along the rails. Assume air drag is negligible. Match each quantity in List-I with an appropriate value from List-II, and choose the correct option.
[Given: The acceleration due to gravity $g=10 \mathrm{~m} \mathrm{~s}^{-2}$ and $e^{-1}=0.4$ ]
Select the correct option:
A
𝑃 → 5, 𝑄 → 2, 𝑅 → 3, 𝑆 → 1
B
𝑃 → 3, 𝑄 → 1, 𝑅 → 4, 𝑆 → 5
C
𝑃 → 4, 𝑄 → 3, 𝑅 → 1, 𝑆 → 2
D
𝑃 → 3, 𝑄 → 4, 𝑅 → 2, 𝑆 → 5
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

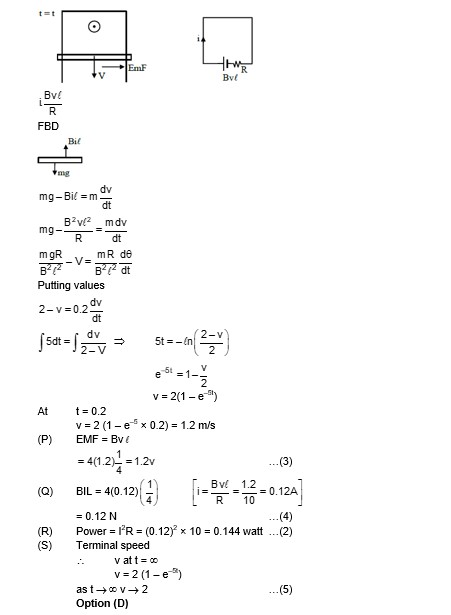

Solution
Solution Image
