JEE MAIN 2022
28-07-2022 S2
Question

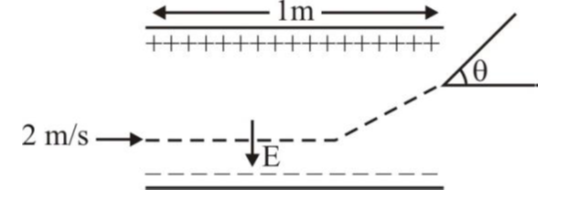

A uniform electric field E = (8 m/e) V/m is created between two parallel plates of length 1m as shown in figure, (where m = mass of electron and e = charge of electron). An electron enters the field symmetrically between the plates with a speed of 2m/s. The angle of the deviation () of the path of the electron as it comes out of the field will be
Question Image
Select the correct option:
A
(A) $\tan ^{-1}(4)$
B
$\tan ^{-1}(2)$
C
$\tan ^{-1}\left(\frac{1}{3}\right)$
D
$\tan ^{-1}(3)$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

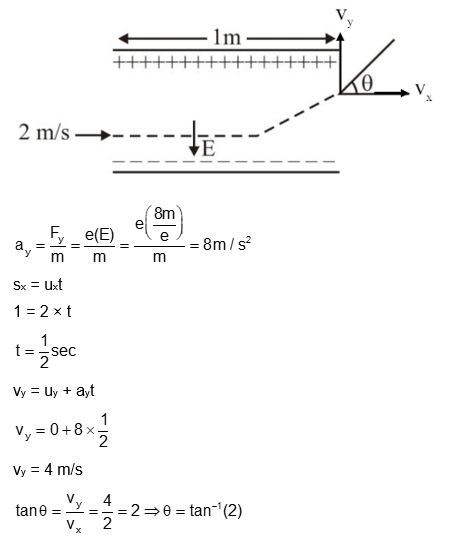

Solution
Solution Image
Question Tags
JEE Main
Physics
Medium
