An L-shaped object made of thin rods...

JEE Main 2019

9-01-2019 S1

Question

An L-shaped object, made of thin rods of uniform mass density, is suspended with a string as shown in figure. If $A B= B C$, and the angle made by $A B$ with downward vertical is $\theta$, then

Select the correct option:

$\tan \theta=\frac{1}{2}$

$\tan \theta=\frac{2}{\sqrt{3}}$

$\tan \theta=\frac{1}{3}$

$\tan \theta=\frac{1}{2 \sqrt{3}}$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

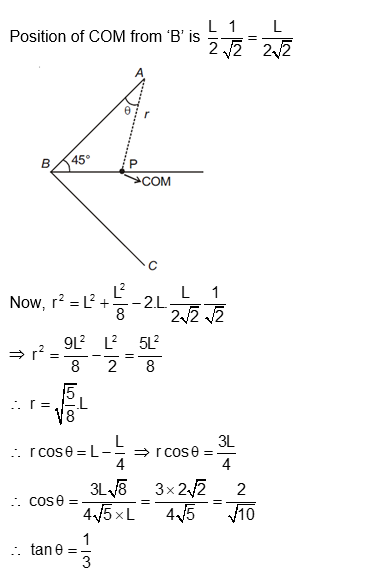

Solution
