An n.p.n transistor with current| Solid State |JEE-MAIN 2022

JEE MAIN 2022

28-07-2022 S2

Question

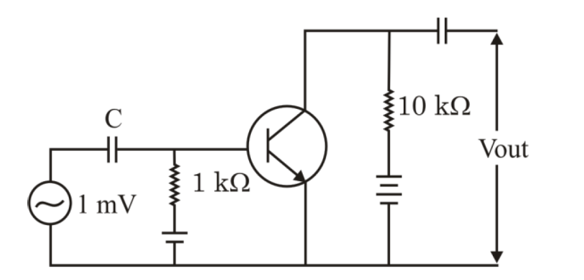

An n.p.n transistor with current gain $\beta=100$ in common emitter configuration is shown in figure. The output voltage of the amplifier will be

Select the correct option:

A

0.1 V

B

1.0 V

C

10 V

D

100 V

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution
