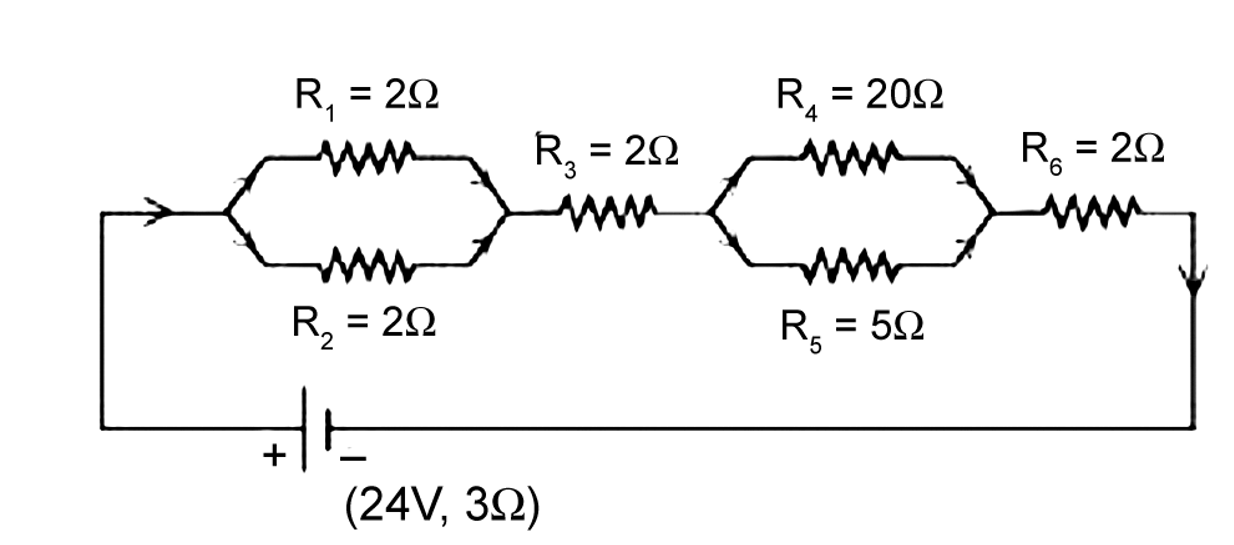

As shown in the figure, a network of resistors is connected to a battery of 24 V with an internal resistance of $3 \Omega$. The currents through the resistors $\mathrm{R}_4$ and $\mathrm{R}_5$ are $\mathrm{I}_4$ and $\mathrm{I}_5$ respectively. The values of $\mathrm{I}_4$ and $\mathrm{I}_5$ are :

Select the correct option:

$\mathrm{I}_4=\frac{8}{5} \mathrm{~A} \text { and } \mathrm{I}_5=\frac{2}{5} \mathrm{~A}$

$\mathrm{I}_4=\frac{24}{5} \mathrm{~A}$ and $\mathrm{I}_5=\frac{6}{5} \mathrm{~A}$

$\mathrm{I}_4=\frac{6}{5} \mathrm{~A}$ and $\mathrm{I}_5=\frac{24}{5} \mathrm{~A}$

$\mathrm{I}_4=\frac{2}{5} \mathrm{~A}$ and $\mathrm{I}_5=\frac{8}{5} \mathrm{~A}$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

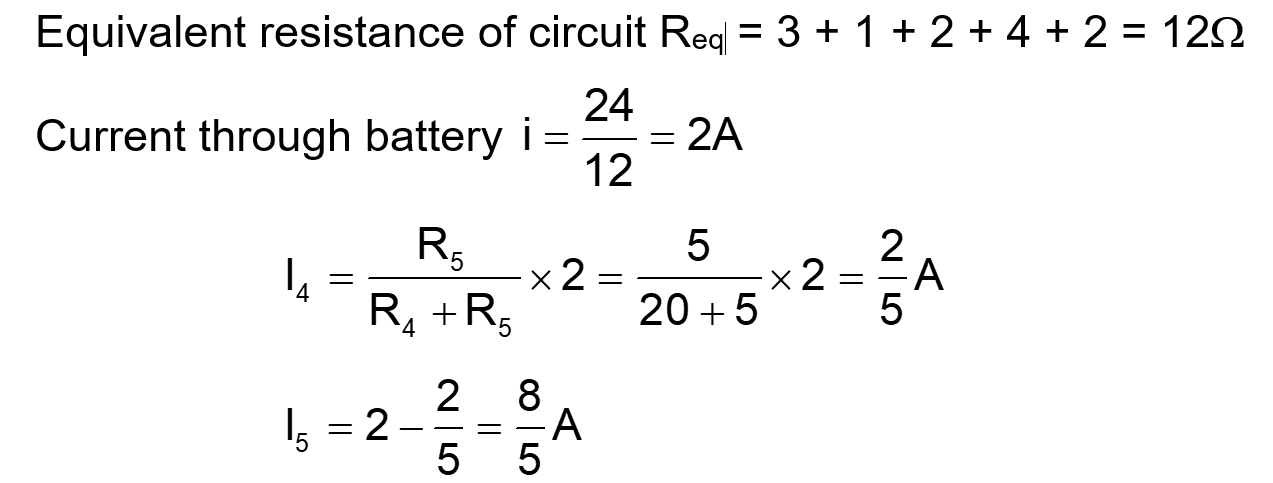

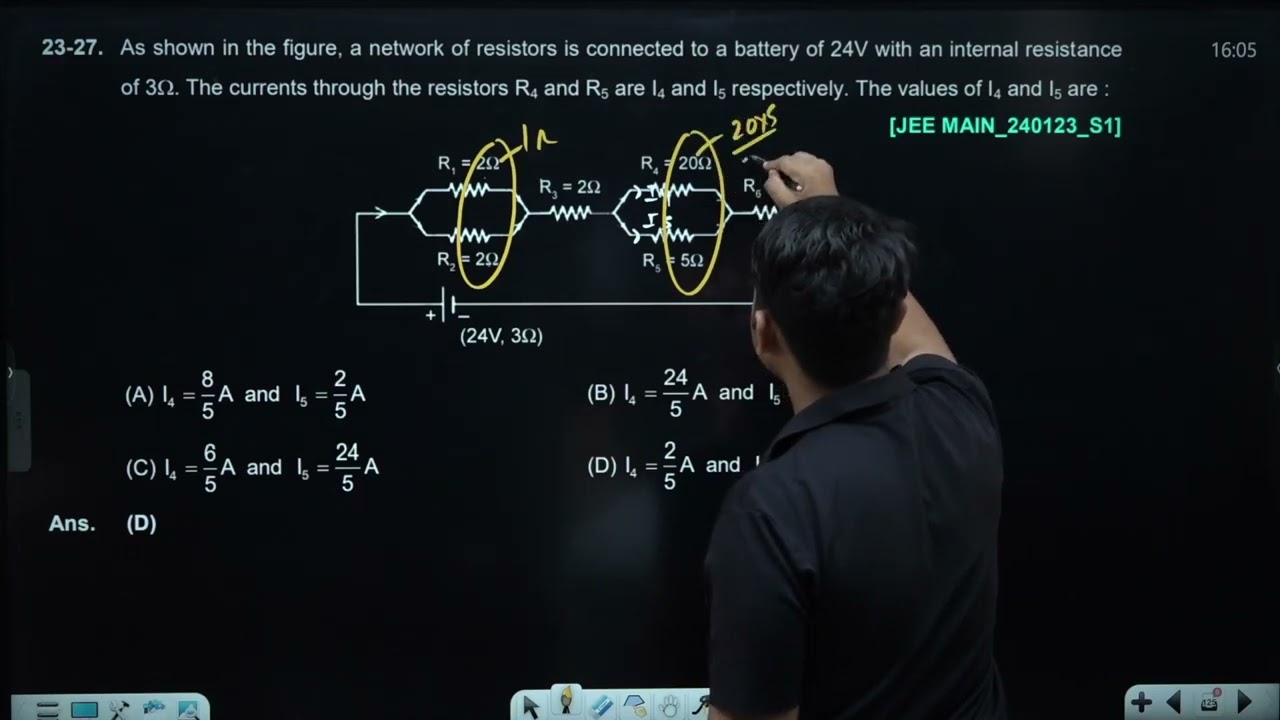

Solution
