JEE MAIN 2026
22-01-2026 S2
Question
Consider the following electrochemical cellin $$ \mathrm{Pt}\left|\mathrm{O}_2(\mathrm{~g})(\mathrm{lbar})\right| \mathrm{HCl}(\mathrm{aq}) \| \mathrm{M}^{2+}(\mathrm{aq}, 1.0 \mathrm{M}) \mid \mathrm{M}(\mathrm{~s}) $$ The pH above which, oxygen gas would start to evolve at anode is $\_\_\_\_$ (nearest integer). Given: $$ \left.\begin{array}{l} \mathrm{E}_{\mathrm{M}^{2+} / \mathrm{M}}^{\mathrm{o}}=0.994 \mathrm{~V} \\ \mathrm{E}_{\mathrm{O}_2 / \mathrm{H}_2 \mathrm{O}}^{\mathrm{o}}=1.23 \mathrm{~V} \end{array}\right\} \text { standard reduction potential } $$ and $\frac{\mathrm{RT}}{\mathrm{F}}(2.303)=0.059 \mathrm{~V}$ at the given condition
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

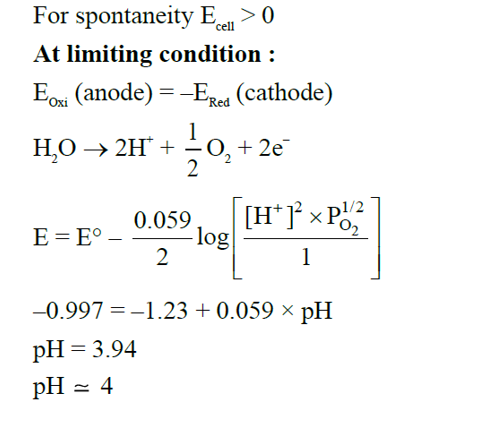

Solution
Solution Image
Question Tags
JEE Main
Chemistry
Medium
