Question

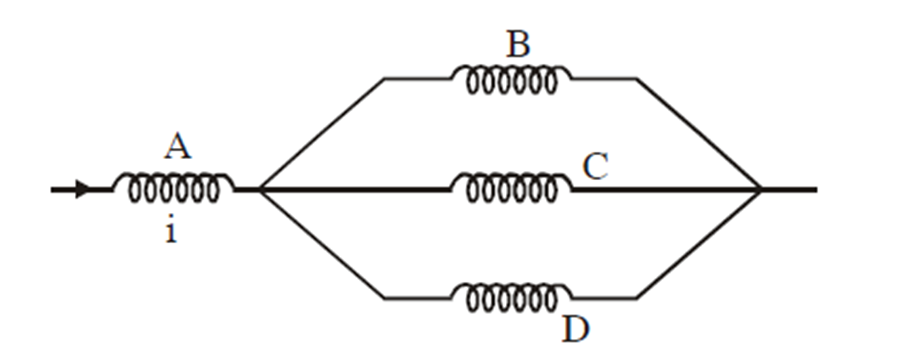

Four identical long solenoids A, B, C and D are connected to each other as shown in the figure. If the magnetic field at the center of A is 3T, the field at the center of C would be : (Assume that the magnetic field is confined with in the volume of respective solenoid).
Question Image
Select the correct option:
A
12T
B
6T
C
9T
D
1T
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

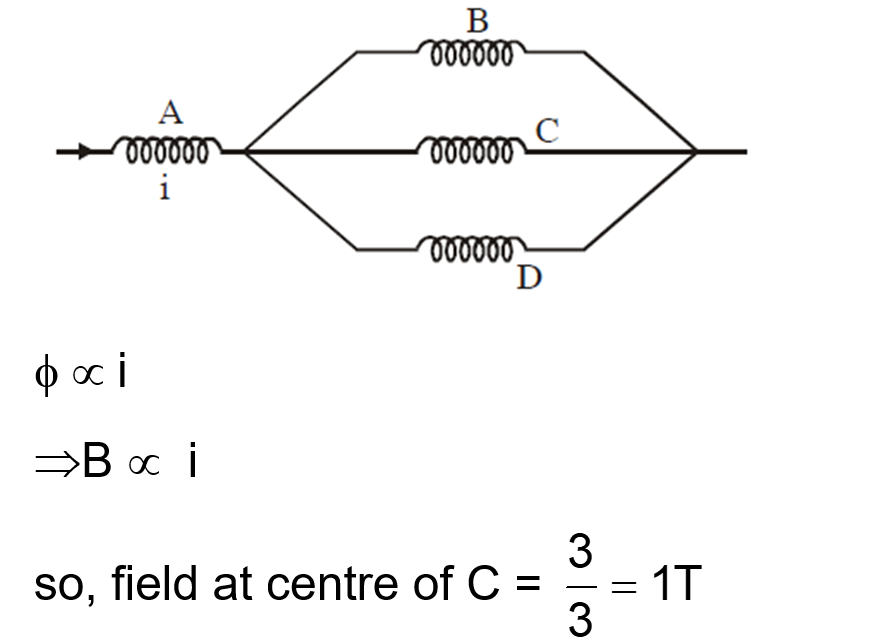

Solution
Solution Image
