JEE MAIN 2021
24-02-2021 S2
Question

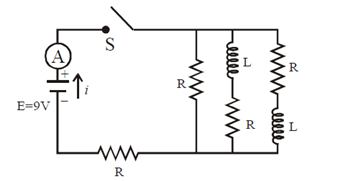

Figure shows a circuit that contains four identical resistors with resistance $\mathrm{R}=2.0 \Omega$, two identical inductors with inductance $\mathrm{L}=2.0 \mathrm{mH}$ and an ideal battery with emf $\mathrm{E}=9 \mathrm{~V}$. The current 'i' just after the switch ' S ' is closed will be :
Question Image
Select the correct option:
A
2.25 A
B
3.0 A
C
3.37 A
D
9 A
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

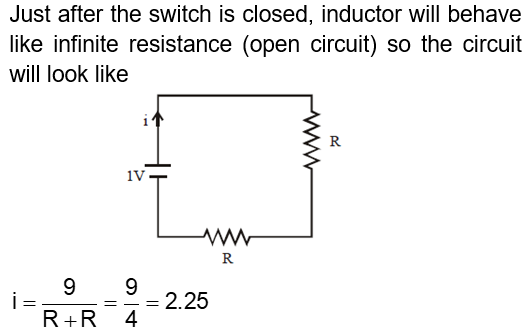

Solution
Solution Image
Question Tags
JEE Main
Physics
Easy
