For a free body diagram | Laws of Motion

JEE MAIN 2022

25-07-2022 S2

Question

For a free body diagram shown in the figure, the four forces are applied in the 'x' and 'y' directions. What additional force must be applied and at what angle with positive x-axis so that the net acceleration of body is zero

Select the correct option:

$\sqrt{2} \mathrm{~N}, 45^{\circ}$

$\sqrt{2} \mathrm{~N}, 135^{\circ}$

$\frac{2}{\sqrt{3}} \mathrm{~N}, 30^{\circ}$

$2 \mathrm{~N}, 45^{\circ}$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

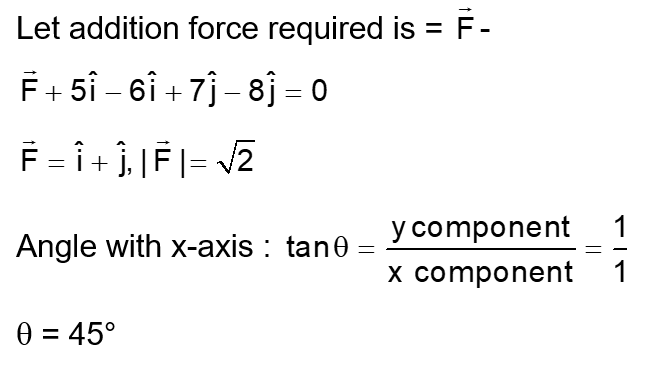

Solution

Question Tags

JEE Main

Physics

Easy
