JEE MAIN 2022

27-06-2022 S2

Question

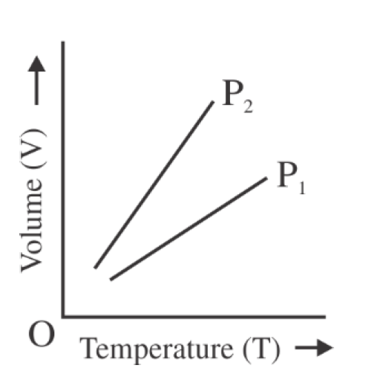

For a perfect gas, two pressures P1 and P2 are shown in figure. The graph shows:

Select the correct option:

$P_1>P_2$

P1 < P2

P1 = P2

Insufficient data to draw any conclusion

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution

$\begin{aligned} & \mathrm{PV}=\mathrm{nRT} \\ & \frac{\mathrm{V}}{\mathrm{T}}=\frac{\mathrm{nR}}{\mathrm{P}} \\ & \frac{\mathrm{nR}}{\mathrm{P}_1}<\frac{\mathrm{nR}}{\mathrm{P}_2} \\ & \mathrm{P}_2<\mathrm{P}_1\end{aligned}$
