Question

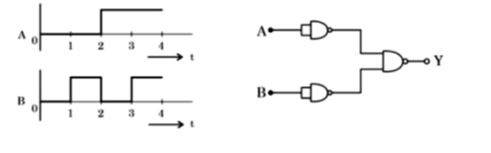

For the logic circuit shown, the output waveform at Y is:

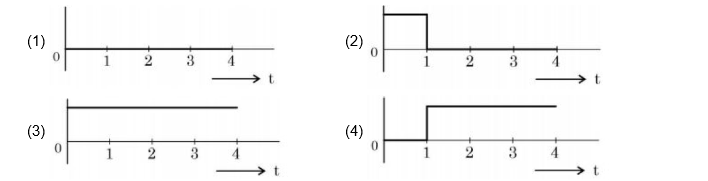

Options

A

B

C

D

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

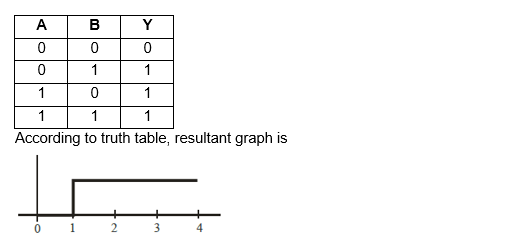

Solution

Question Tags

JEE Main

Physics

Medium
