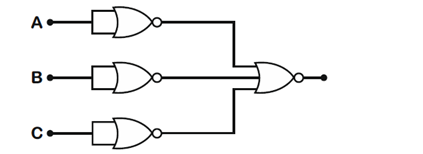

Identify the operation performed by the circuit given below

Select the correct option:

AND

NOT

NAND

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution

$$ \overline{(\overline{\mathrm{A}}+\overline{\mathrm{B}}+\overline{\mathrm{C}})}=\mathrm{A} \cdot \mathrm{~B} \cdot \mathrm{C} $$ $\Rightarrow \quad$ AND gate
