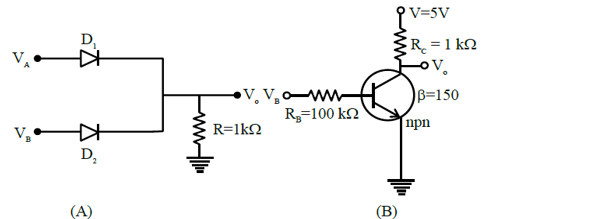

If $V_A$ and $V_B$ are the input voltages (either 5 V or 0 V ) and $V_0$ is the output voltage then the two gates represented in the following circuit (A) and (B) are:-

Select the correct option:

AND and OR Gate

OR and NOT Gate

NAND and NOR Gate

AND and NOT Gate

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

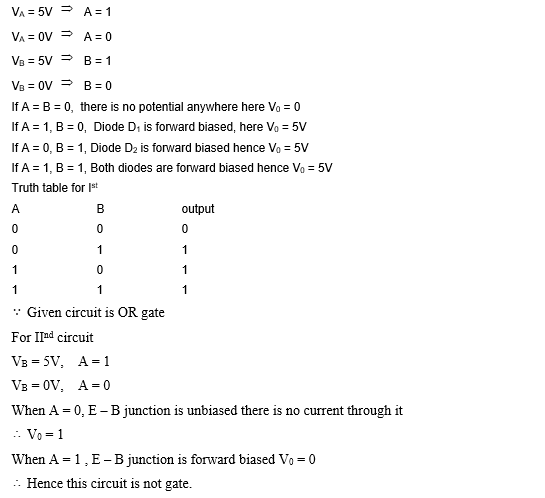

Solution
