JEE Advance 2015
Paper-1
Question

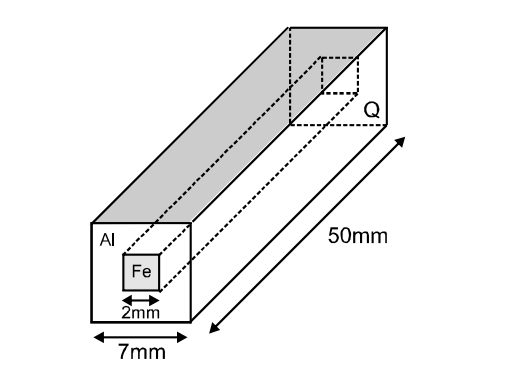

In an aluminum (AI) bar of square cross section, a square hole is drilled and is filled with iron (Fe) as shown in the figure, The electrical resistivities of Al and Fe are $2.7 \times 10^{-8} \Omega \mathrm{~m}$ and $1.0 \times 10^{-7} \Omega \mathrm{~m}$, respectively. The electrical resistance between the two faces P and Q of the composite bar is
Question Image
Select the correct option:
A
$\frac{2475}{64} \mu \Omega$
B
$\frac{1875}{64} \mu \Omega$
C
$\frac{1875}{49} \mu \Omega$
D
$\frac{2475}{132} \mu \Omega$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

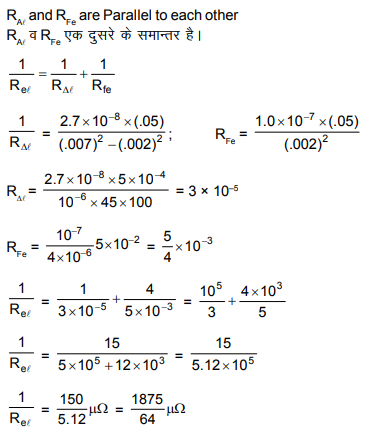

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
