In the circuit shown | CAPACITANCE

JEE MAIN 2019

12-01-2019 S2

Question

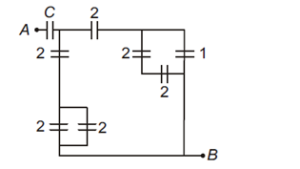

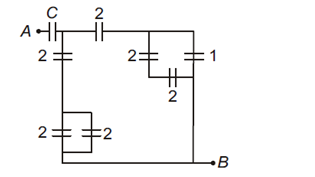

In the circuit shown, find $C$ if the effective capacitance of the whole circuit is to be $0.5 \mu F$. All values in the circuit are in $\mu \mathrm{F}$.

Select the correct option:

$\frac{7}{11} \mu \mathrm{~F}$

$4 \mu \mathrm{~F}$

$\frac{6}{5} \mu \mathrm{~F}$

$\frac{7}{10} \mu \mathrm{~F}$

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

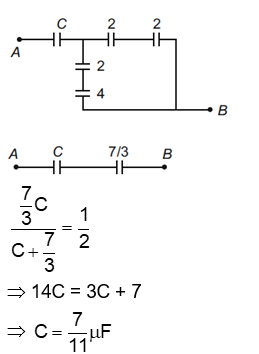

Solution

Question Tags

JEE Main

Physics

Medium
