JEE Advance 2017

Paper-1

Multiple correct answers - Select all that apply

Question

In the circuit shown, $\mathrm{L}=1 \mu \mathrm{H}, \mathrm{C}=1 \mu \mathrm{~F}$ and $\mathrm{R}=1 \mathrm{k} \Omega$. They are connected in series with an a.c. source $\mathrm{V}=\mathrm{V}_0 \sin \omega t$ as shown. Which of the following options is/are correct?

Select ALL correct options:

A

The current will be in phase with the voltage if $\omega=10^4 \mathrm{rad} . \mathrm{s}^{-1}$

B

At $\omega \gg 10^6$ rad. $\mathrm{s}^{-1}$, the circuit behaves like a capacitor

C

The frequency at which the current will be in phase with the voltage is independent of R

D

At $\omega \sim 0$ the current flowing through the circuit becomes nearly zero.

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

⚠ Partially correct. Some answers are missing.

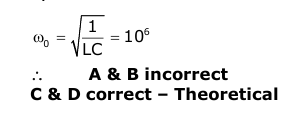

Solution

Question Tags

JEE Advance

Physics

Easy
