JEE Advance2018
Paper-1
Multiple correct answers - Select all that apply
Question

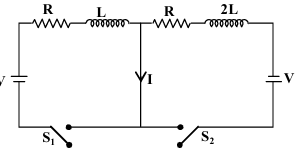

In the figure below, the switches $S_1$ and $S_2$ are closed simultaneously at $t=0$ and a current starts to flow in the circuit. Both the batteries have the same magnitude of the electromotive force (emf) and the polarities are as indicated in the figure. Ignore mutual inductance between the inductors. The current $I$ in the middle wire reaches its maximum magnitude $I_{\max }$ at time $t=\tau$. Which of the following statements is (are) true?
Select ALL correct options:
A
$I_{\max }=\frac{V}{2 R}$
B
$I_{\max }=\frac{V}{4 R}$
C
$\tau=\frac{L}{R} \ln 2$
D
$\tau=\frac{2 L}{R} \ln 2$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

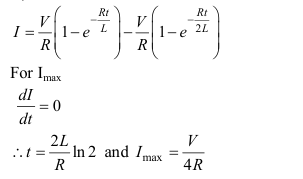

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
