JEE Advance 2012
paper 2
Multiple correct answers - Select all that apply
Question

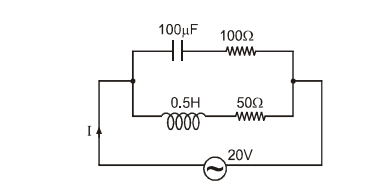

In the given circuit, the AC source has $\omega=100 \mathrm{rad} / \mathrm{s}$. considering the inductor and capacitor to be ideal, the correct choice (s) is(are)
Question Image
Select ALL correct options:
A
The current through the circuit, I is 0.3 A
B
The current through the circuit, I is $0.3 \sqrt{2} \mathrm{~A}$.
C
The voltage across $100 \Omega$ resistor $=10 \sqrt{2} \mathrm{~V}$
D
The voltage across $50 \Omega$ resistor $=10 \mathrm{~V}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

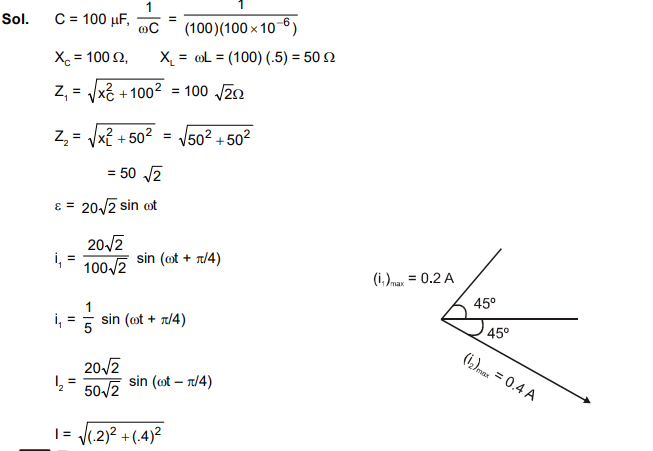

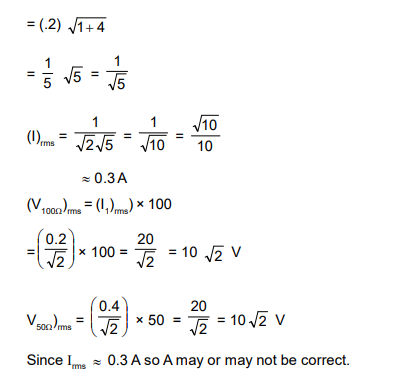

Solution
Question Tags
JEE Advance
Physics
Easy
