In the given figure | Semiconductor Electronic|JEE-MAIN 2021

JEE MAIN 2021

01-09-21 S2

Question

In the given figure, each diode has a forward bias resistance of $30 \Omega$ and infinite resistance in reverse bias. The current I will be :

Select the correct option:

A

3.75 A

B

2.35 A

C

2 A

D

2.73 A

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

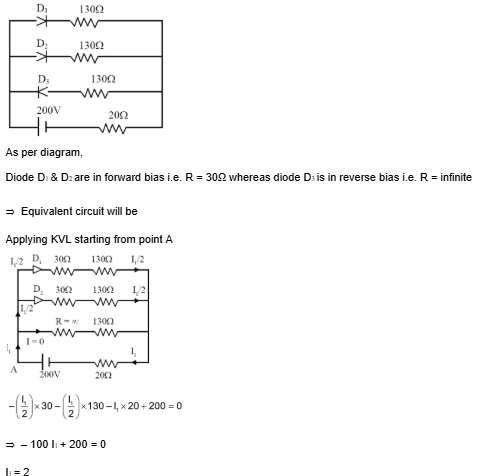

Solution

Question Tags

JEE Main

Physics

Easy
