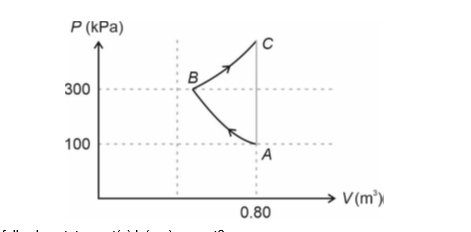

In the given P-V diagram, a monoatomic gas $\left(y=\frac{5}{3}\right)$ is first compressed adiabatically from state A state B.
Then it expands isothermally from state B to state C. [Given : $\left(\frac{1}{3}\right)^{0.6}=0.5$ in $2=0.7$ ]
Select ALL correct options:
A
The magnitude of the total work done in the process $\mathrm{A} \rightarrow \mathrm{B} \rightarrow \mathrm{C}$ is 144 kJ .
B
The magnitude of the work done in the process $\mathrm{B} \rightarrow \mathrm{C}$ is 84 kJ .
C
The magnitude of the work done in the process $\mathrm{A} \rightarrow \mathrm{B}$ is 60 kJ .
D
The magnitude of the work done in the process $C \rightarrow A$ is zero.
