JEE Advance2016
Paper-2
Question
A gas enclosed in a cylinder with movable frictionless piston. Its initial thermodynamic state at pressure $P_i=10^5 \mathrm{~m}^3$ and volume $\mathrm{v}_{\mathrm{i}}=10^{-3} \mathrm{~m}^3$ changes to a final state a $P_{\mathrm{f}}=(1 / 32) \times 10^5 \mathrm{~Pa}$ and $\mathrm{V}_{\mathrm{f}}=8 \times 10^{-3} \mathrm{~m}^3$ in an adiabatic quasi - static process, such that $\mathrm{P}^3 \mathrm{~V}^5=$ constant. Consider another thermodynamic process that brings the system from the same initial state to the same final state in two steps : an isobaric expansion at $\mathrm{P}_{\mathrm{i}}$ followed by an isochoric (isovolumetric) process at volume $\mathrm{V}_{\mathrm{f}}$. The amount of heat supplied to the system in the two process in approximately
Select the correct option:
A
112 J
B
294 J
C
588 J
D
813J
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

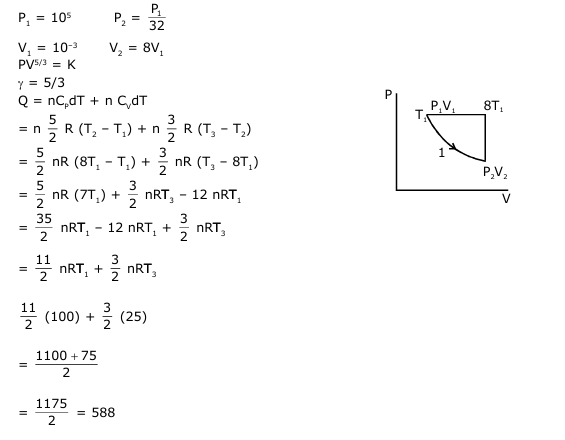

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
