Question

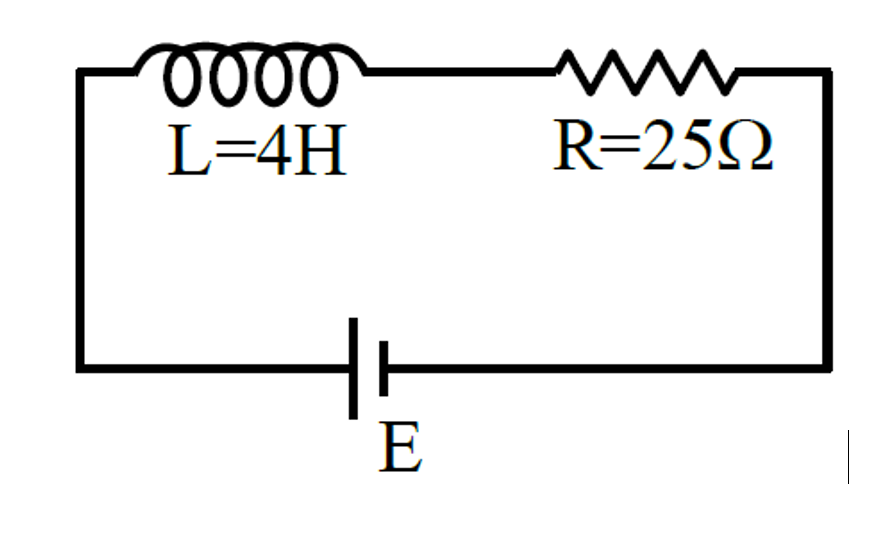

In the given figure, an inductor and a resistor are connected in series with a battery of emf E volt. $\frac{E^a}{2 b} \mathrm{~J} /$ s represents the maximum rate at which the energy is stored in the magnetic field (inductor). The numerical value of $\frac{b}{a}$ will be $\_\_\_\_$
Question Image
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

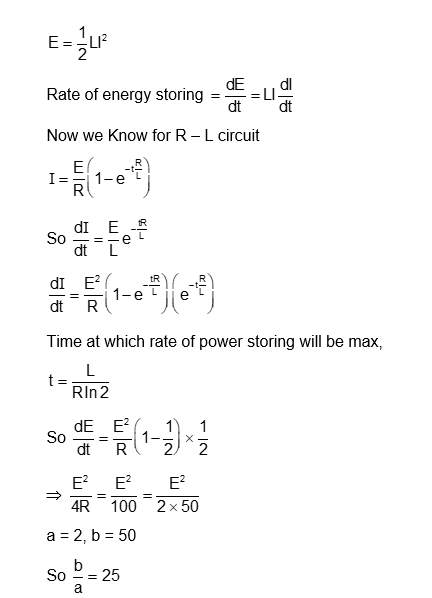

Solution
Solution Image
