JEE Advance 2021
Paper-2
Multiple correct answers - Select all that apply
Question
One end of a horizontal uniform beam of weight W and length L is hinged on a vertical wall at point O and its other end is supported by a light inextensible rope. The other end of the rope is fixed at point Q , at a height L above the hinge at point O . A block of weight $\alpha \mathrm{W}$ is attached at the point P of the beam, as shown in the figure (not to scale). The rope can sustain a maximum tension of $(2 \sqrt{2}) \mathrm{W}$. Which of the following statement(s) is(are) correct?
Question Image
Select ALL correct options:
A
The vertical component of reaction force at O does not depend on $\alpha$
B
The horizontal component of reaction force at O is equal to W for $\alpha=0.5$
C
The tension in the rope is 2W for $\alpha=0.5$
D
The rope breaks if $\alpha>1.5$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

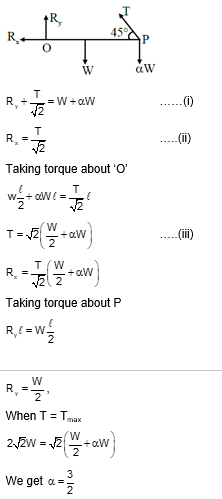

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
