Primary Coil of a Transformer... |JEE Main 2024| Alternating

JEE-Main_2024

30.01.24_(S1)

Question

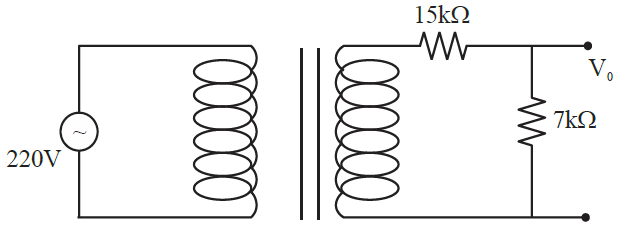

Primary coil of a transformer is connected to 220V ac. Primary and secondary turns of the transforms are 100 and 10 respectively. Secondary coil of transformer is connected to two series resistance shown in shown in figure. The output voltage $\left(V_0\right)$ is :

Select the correct option:

7 V

15 V

44 V

22 V

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution

$\begin{aligned} & \frac{\varepsilon_1}{\varepsilon_2}=\frac{N_1}{N_2}=\frac{100}{10} \Rightarrow \varepsilon_2=22 \mathrm{~V} \\ & I=\frac{22}{22 \times 10^3}=1 \mathrm{~mA}, V_0=7 \mathrm{~V}\end{aligned}$

Question Tags

JEE Main

Physics

Easy
