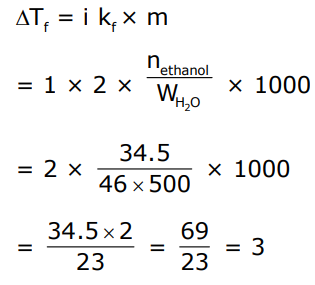

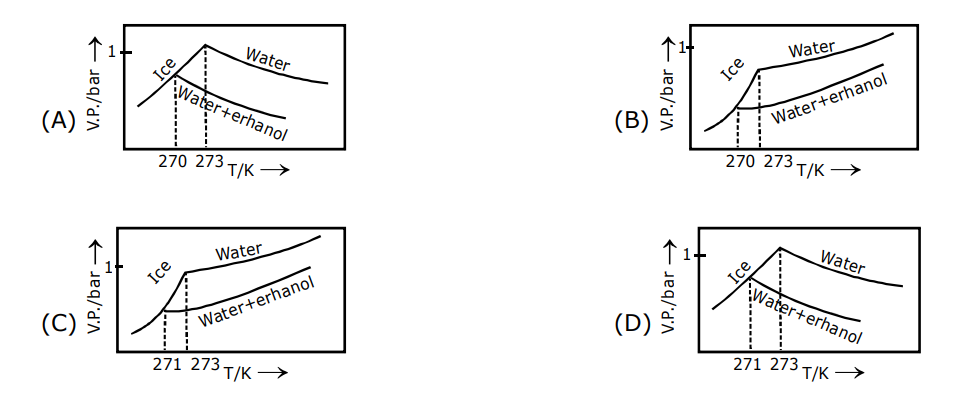

Pure water freezes at 273 K and 1 bar. The addition of 34.5 g of ethanol to 500 g of water changes the freezing point of the solution. Use the freezing point depression constant of water as 2 K kg $\mathrm{mol}^{-1}$. The figures shown below represent plots of vapour pressure (V.P.) versus temperature (T). [Molecular weight of ethanol is $46 \mathrm{~mol}^{-1}$ ]
Among the following, the option representing change in the freezing point is
