Question

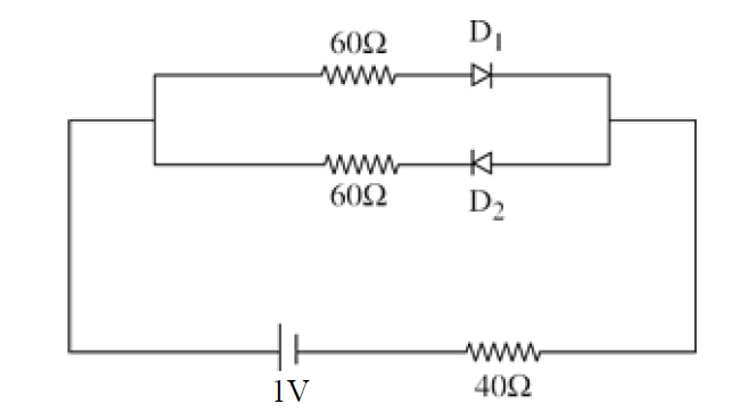

The cut-off voltage of the diodes (shown in figure) in forward bias is 0.6 V. The current through the resister of 40 $\Omega$ is _______ mA

Write Your Answer

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution

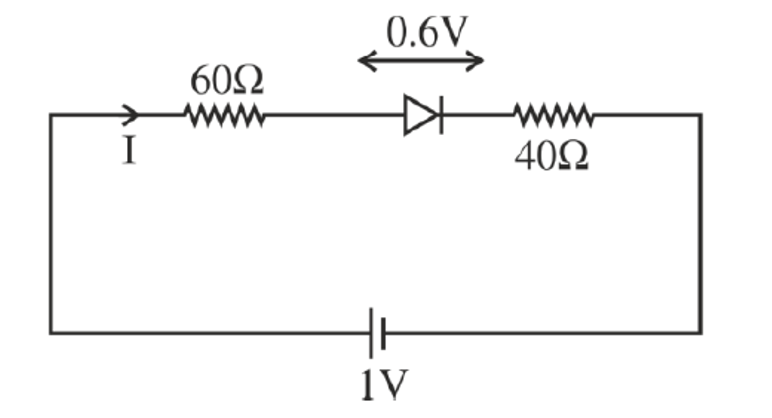

$\begin{aligned} & 1-I(60)-0.6-I(40)=0 \\ & \frac{0.4}{100}=I \\ & I=4 \mathrm{~mA}\end{aligned}$
