JEE MAIN 2023
10-04-2023
Question
The distance between two plates of a capacitor is $d$ and its capacitance is $C_1$, when air is the medium between the plates. If a metal sheet of thickness $\frac{2 d}{3}$ and of same area as plate is introduced between the plates, the capacitance of the capacitor becomes $\mathrm{C}_2$. The ratio $\frac{\mathrm{C}_2}{\mathrm{C}_1}$ is:
Select the correct option:
A
2 : 1
B
4 : 1
C
3 : 1
D
1 : 1
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

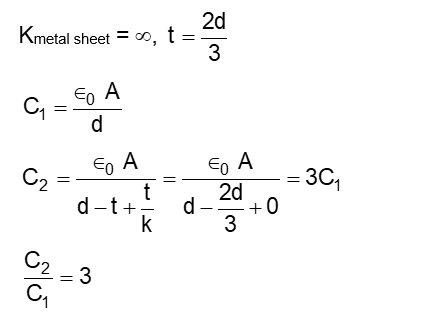

Solution
Solution Image
Question Tags
JEE Main
Physics
Easy
