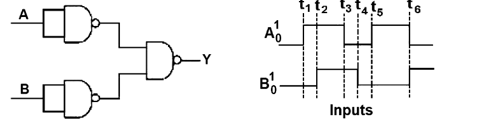

The output waveform of the given logical circuit for the following inputs A and B as shown below, is

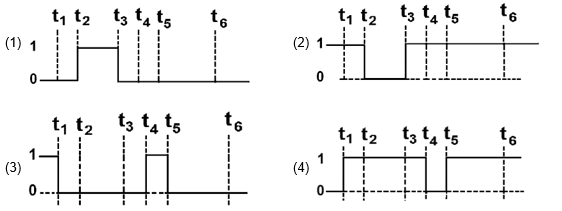

Options

A

B

C

D
