JEE Advance 2019
Paper-2
Multiple correct answers - Select all that apply
Question

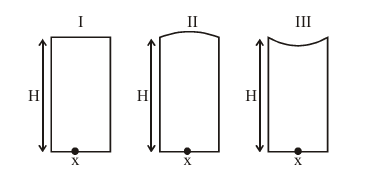

Three glass cylinders of equal height $\mathrm{H}=30 \mathrm{~cm}$ and same refractive index $\mathrm{n}=1.5$ are placed on a horizontal surfaces shown in figure. Cylinder I has a flat top, cylinder II has a convex top and cylinder III has a concave top. The radii of curvature of the two curved tops are same ( $\mathrm{R}=3 \mathrm{~m}$ ). If $\mathrm{H}_1, \mathrm{H}_2$ and $\mathrm{H}_3$ are the apparent depths of a point X on the bottom of the three cylinders, respectively, the correct statement(s) is/are
Question Image
Select ALL correct options:
A
$\mathrm{H}_3>\mathrm{H}_1$
B
$0.8 \mathrm{~cm}<\left(\mathrm{H}_2-\mathrm{H}_1\right)<0.9 \mathrm{~cm}$
C
$\mathrm{H}_2>\mathrm{H}_3$
D
$\mathrm{H}_2>\mathrm{H}_1$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

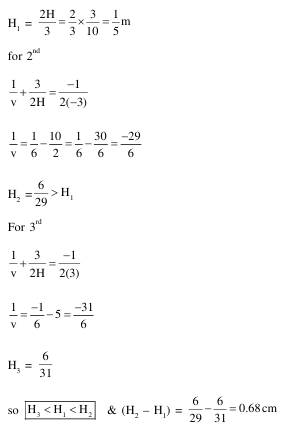

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
