Question
Three identical capacitors $C_1, C_2$ and $C_3$ have a capacitance of $1.0 \mu F$ each and they are uncharged initially. They are connected in a circuit as shown in the figure and $C_l$ is then filled completely with a dielectric material of relative permittivity $\epsilon_r$. The cell electromotive force (emf) $V_0=8 \mathrm{~V}$. First the switch $S_l$ is closed while the switch $S_2$ is kept open. When the capacitor $C_3$ is fully charged, $S_1$ is opened and $S_2$ is closed simultaneously. When all the capacitors reach equilibrium, the charge on $C_3$ is found to be $5 \mu C$. The value of $\epsilon_r=$ $\_\_\_\_$ .
Write Your Answer
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

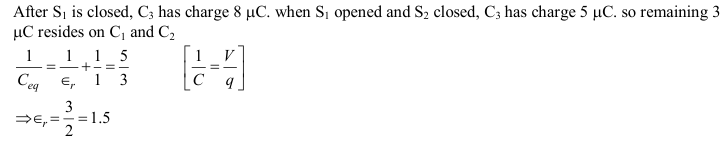

Solution
Solution Image
