JEE MAIN 2025
04-04-2025 S2
Question

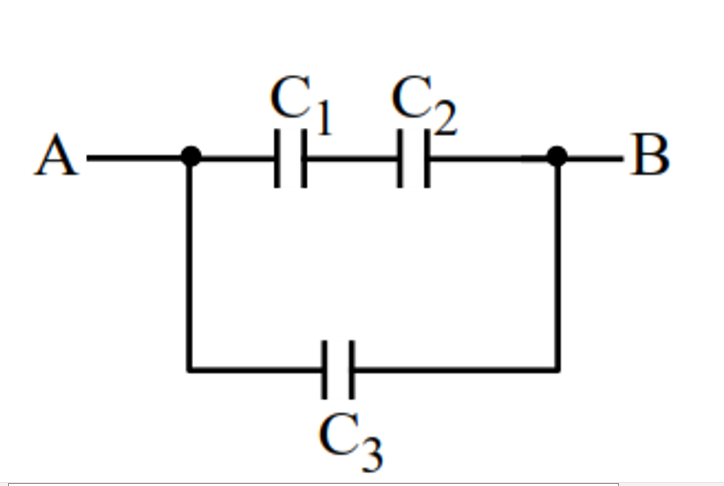

Three parallel plate capacitors $C_1, C_2$ and $C_3$ each of capacitance $5 \mu \mathrm{~F}$ are connected as shown in figure. The effective capacitance between points $A$ and $B$, when the space between the parallel plates of $C_1$ capacitor is filled with a dielectric medium having dielectric constant of 4 , is :
Question Image
Select the correct option:
A
$9 \mu \mathrm{~F}$
B
$7.5 \mu \mathrm{~F}$
C
$30 \mu \mathrm{~F}$
D
$22.5 \mu \mathrm{~F}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

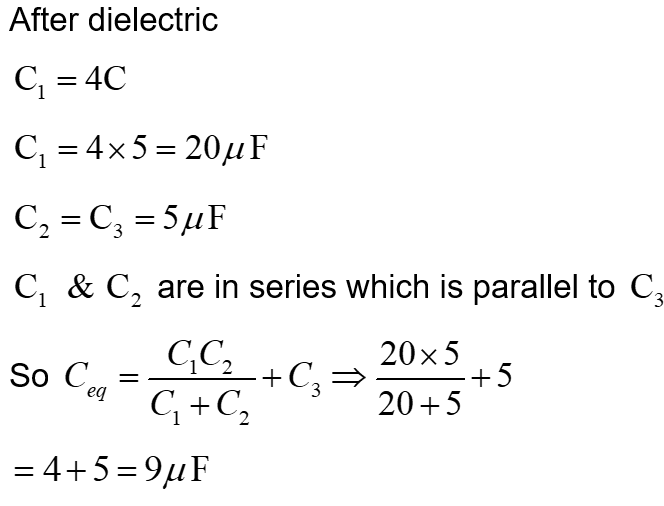

Solution
Solution Image
Question Tags
JEE Main
Physics
Medium
