JEE MAIN 2024
01-02-2024 S2
Question

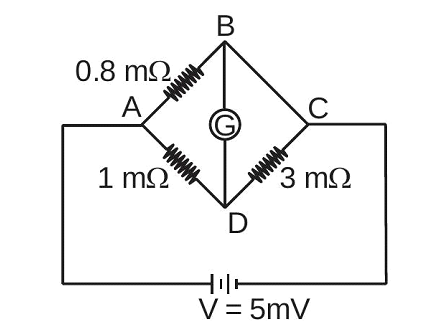

To measure the temperature coefficient of resistivity $\alpha$ of a semiconductor, an electrical arrangement shown in the figure is prepared. The arm BC is made up of the semiconductor. The experiment is being conducted at $25^{\circ} \mathrm{C}$ and resistance of the semiconductor arm is $3 \mathrm{~m} \Omega$ . Arm BC is cooled at a constant rate of $2^{\circ} \mathrm{C} / \mathrm{s}$. If the galvanometer G shows no deflection after$ 10 \mathrm{~s} $ , then $\alpha$ is :
Select the correct option:
A
$-2 \times 10^{-2 \circ} \mathrm{C}^{-1}$
B
$-1.5 \times 10^{-2^{\circ}} \mathrm{C}^{-1}$
C
$-1 \times 10^{-2}{ }_{\circ} \mathrm{C}^{-1}$
D
$-2.5 \times 10^{-2^{\circ}} \mathrm{C}^{-1}$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

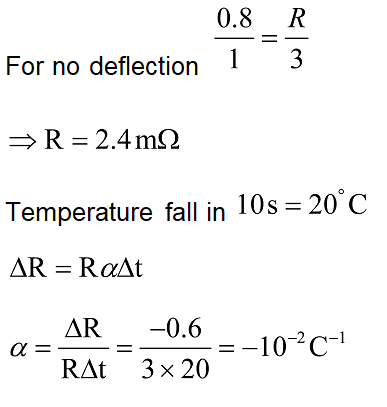

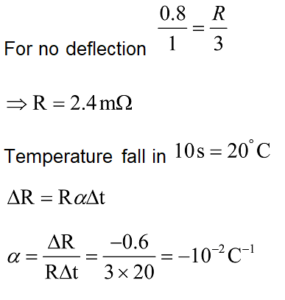

Solution
Question Tags
JEE Main
Physics
Medium
