To Verify Ohm's law a student | Physics | JEE Advance 2010

Competishun Header

JEE ADVANCE 2010

paper 1

Question

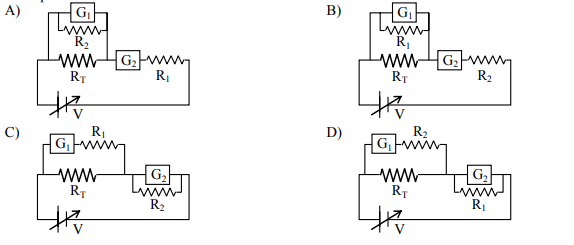

To Verify Ohm's law, a student is provided with a test resistor $R_T$, a high resistance $R_1$, a small resistance $R_2$, two identical galvanometers $G_1$ and $G_2$, and a variable voltage source $V$. The correct circuit to carry out the experiment is

Options

A

B

C

D

✓ Correct! Well done.

✗ Incorrect. Try again or view the solution.

Solution

Question Tags

JEE Advance

Physics

Easy

Start Preparing for JEE with Competishun

Video Solution

BY competishun

Watch Solution from 13:37
