Question
Two cells of emf 1 V and 2 V and internal resistances $2 \Omega$ and $1 \Omega$, respectively, are connected in series with an external resistance of $6 \Omega$. The total current in the circuit is $I_1$. Now the same two cells in parallel configuration are connected to same external resistance. In this case, the total current drawn is $\mathrm{I}_2$. The value of $\left(\frac{\mathrm{I}_1}{\mathrm{I}_2}\right)$ is $\frac{x}{3}$. The value of x is
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.

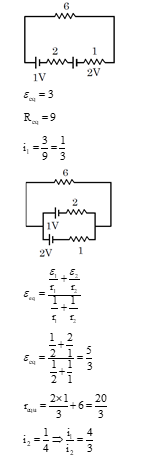

Solution
Question Tags
JEE Main
Physics
Medium
