JEE MAIN 2026
21-1-2026 S2
Question

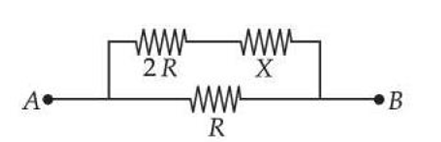

Two known resistances of $R \Omega$ and $2 R \Omega$ and one unknown resistance $X \Omega$ are connected in a circuit as shown in the figure. If the equivalent resistance between points A and B in the circuit is $X \Omega$, then the value of $X$ is $\_\_\_\_$ $\Omega$.
Question Image
Select the correct option:
A
$(\sqrt{3}-1) R$
B
R
C
$2(\sqrt{3}-1) R$
D
$(\sqrt{3}+1) R$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
Solution
Solution Image
Question Tags
JEE Main
Physics
Medium
Start Preparing for JEE with Competishun

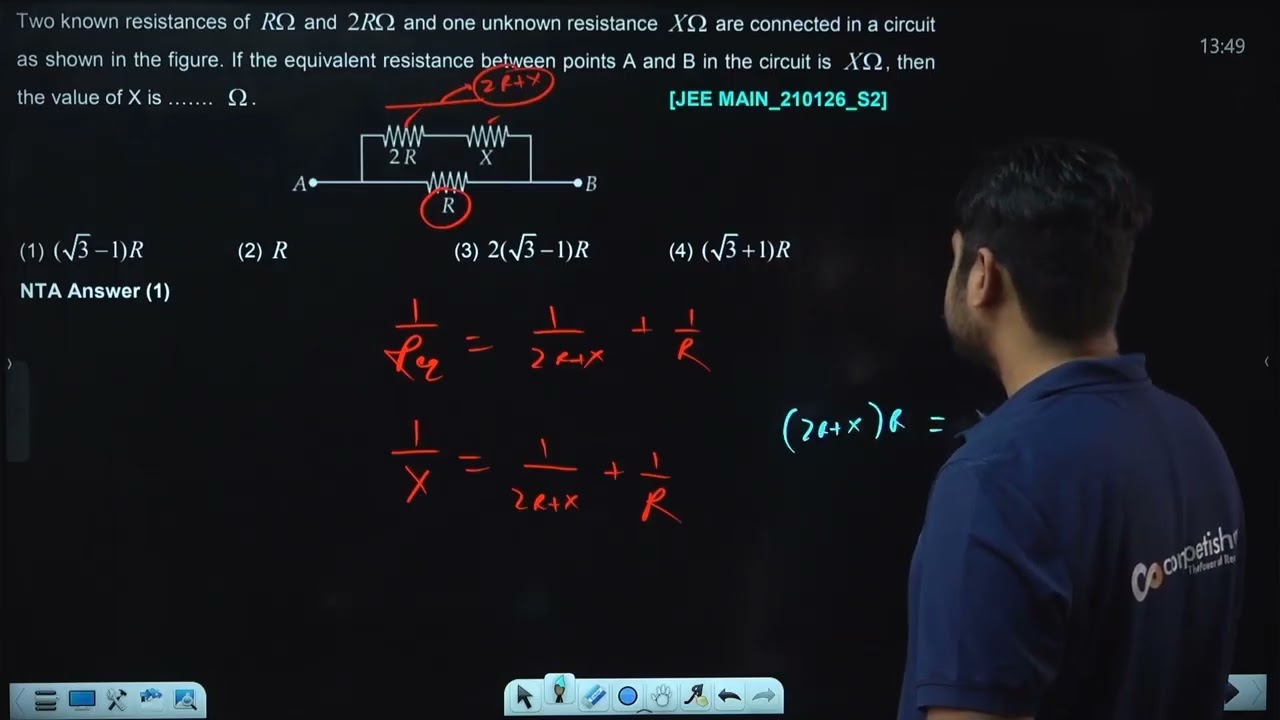

Video Solution
