JEE Advance 2015
Paper-2
Multiple correct answers - Select all that apply
Question
Two spheres P and Q of equal radii have densities $\rho_1$ and $\rho_2$, respectively. The spheres are connected by a massless string and placed in liquids $L_1$ and $L_2$ of densities $\sigma_1$ and $\sigma_2$ and viscosities $\eta_1$ and $\eta_2$, respectively. They float in equilibrium with the sphere P in $\mathrm{L}_1$ and sphere Q in $\mathrm{L}_2$ and the string being taut (see figure). If sphere $P$ alone in $L_2$, has terminal velocity $\vec{V}_P$ and $Q$ alone in $L_1$ has terminal velocity $\vec{V}_Q$, then
Question Image
Select ALL correct options:
A
$\frac{\left|\overrightarrow{\mathrm{V}}_{\mathrm{P}}\right|}{\left|\overrightarrow{\mathrm{V}}_{\mathrm{Q}}\right|}=\frac{\eta_1}{\eta_2}$
B
$\frac{\left|\overrightarrow{\mathrm{V}}_{\mathrm{P}}\right|}{\left|\overrightarrow{\mathrm{V}}_{\mathrm{Q}}\right|}=\frac{\eta_2}{\eta_1}$
C
$\vec{V}_P \cdot \vec{V}_Q>0$
D
$\overline{\mathrm{V}}_{\mathrm{P}} \cdot \overline{\mathrm{V}}_{\mathrm{Q}}<0$
✓ Correct! Well done.
✗ Incorrect. Try again or view the solution.
⚠ Partially correct. Some answers are missing.

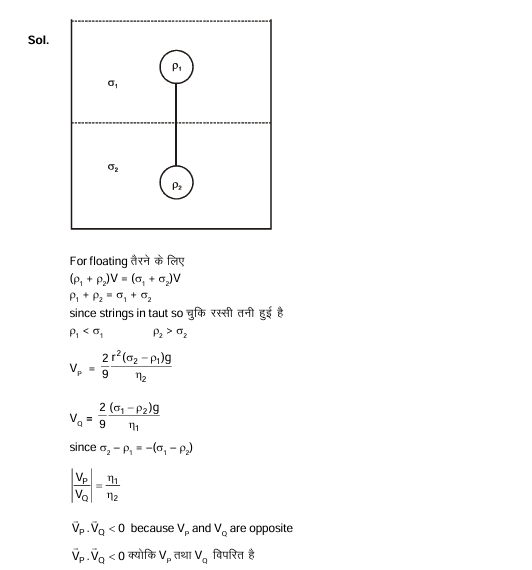

Solution
Solution Image
Question Tags
JEE Advance
Physics
Easy
